System
Rehab
Medium
Water
Application area
Industry
Line type
Supply line
Country
Australia
Region
Western Australia
Situation

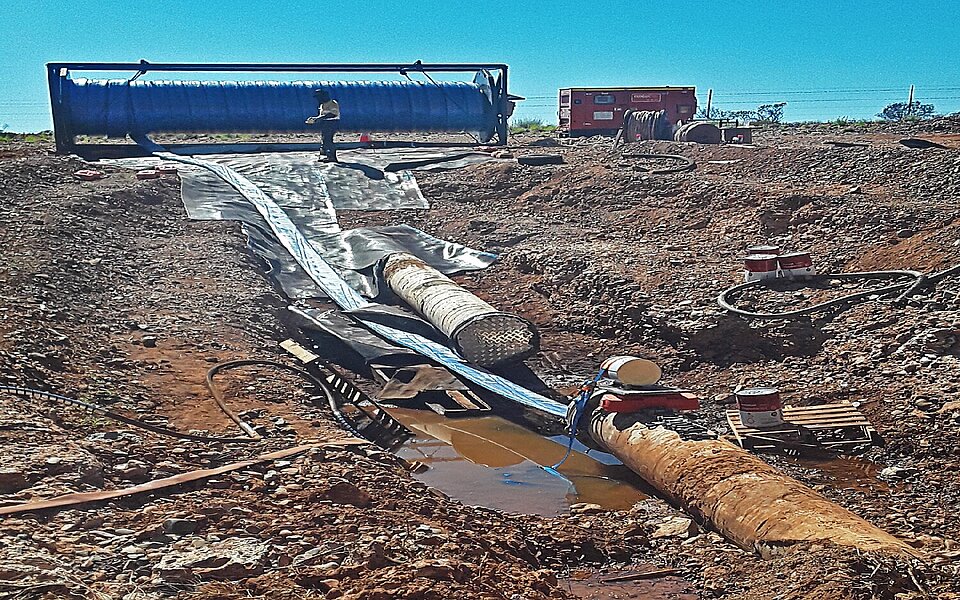

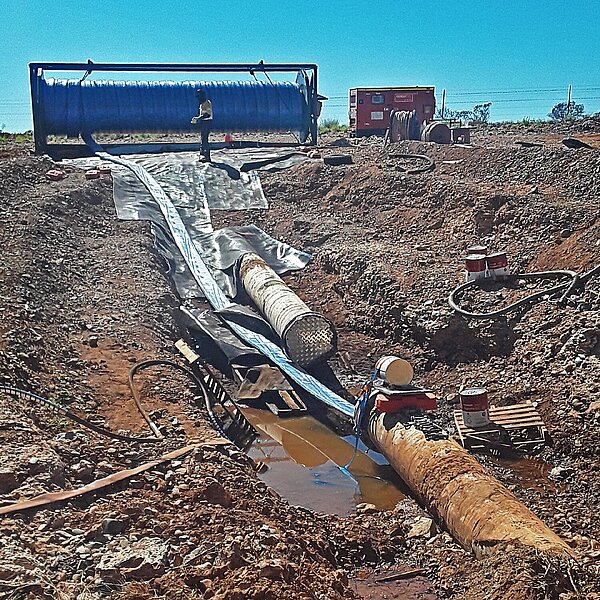

Due to its condition, the operator defined a section of a DN 550 mild steel cement-lined potable water pipe that supplies the remote mining town of Paraburdoo, located about 1,500 kilometres from Perth as a high risk. The one-kilometre-long section of the pipeline crosses a creek and runs through areas of cultural heritage sensitivity.
Paraburdoo is located on the edge of the desert with temperatures rising above 40° C. The trenchless method did not expose the crews to the heat longer than necessary.
The CO2 emissions on site as well as the amount of earth movement can be reduced by over 90% with a trenchless technology compared to traditional dig-and-lay. This fit into the operator’s target to reduce scope 1 and 2 emissions by 2030.
Technical details
Material of host pipe
Mild steel, cement-lined
Diameter of host pipe
DN 550
Transported fluid
Potable water
Operating pressure
6 bar
Total length
~ 1,000 m
Number of sections
1 section
Number of bends
2 x 22.5°
