Overland Piping system
Primus Line® Overland Piping – for flexible above-ground pipes

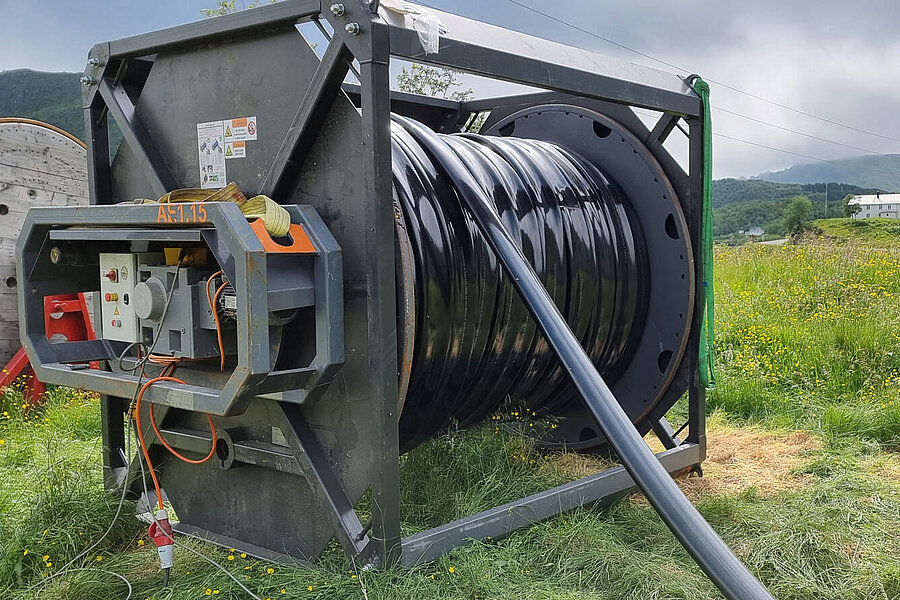

The Primus Line® Overland Piping system is an environmentally orientated, quick to install and reusable solution for creating above-ground pipes. It can be flexibly unrolled and rolled up again and adapts naturally to changes in direction and uneven surfaces.

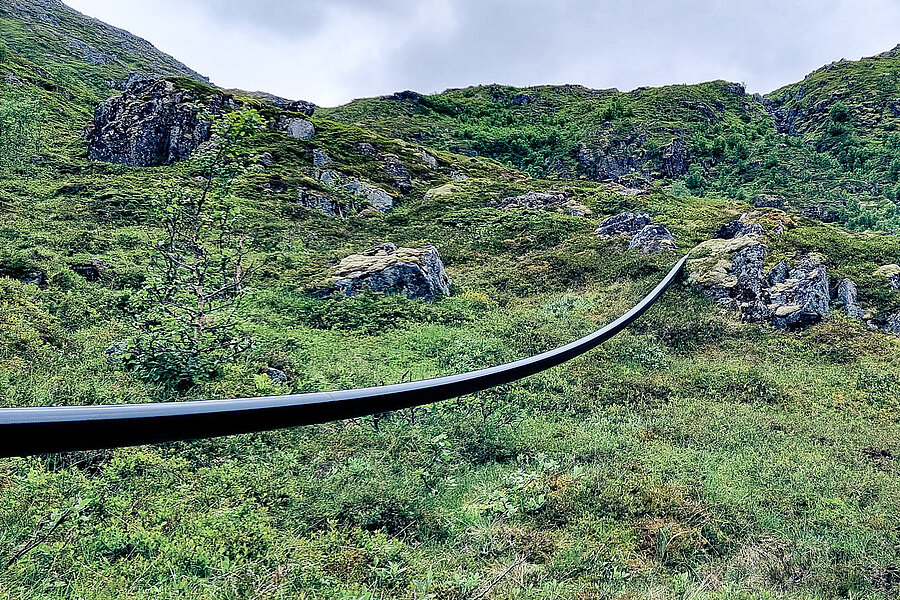

Its installation is also possible in challenging and hard-to-reach terrain. Numerous liquid media can be transported, including demanding and potentially hazardous media.
Fields of application
Primus Line® Overland Piping is the ideal solution for temporary pipelines, for example in mining or industry, but also in ecologically sensitive areas. Due to its short installation time, the system is also suitable for bypasses in emergency cases, for example when pipes have been damaged by landslides, floods or forest fires.
Technical details
Nominal widths
DN 150 to DN 350
Wall thickness
6 millimetres
Maximum operating pressure
up to 56 bar (depending on the diameter)
Temperature resistance
more than 30 degrees Celsius (up to 60 degrees Celsius under certain conditions)
In use worldwide
