Rehabilitation of a DN 300 water pipe in Norway

Drinking water pipe supplying a busy industrial area in Oslo Sydhavna

System

Rehab

Medium

Water

Application area

Utility

Line type

Transport line

Country

Norway

Region

Oslo

Situation

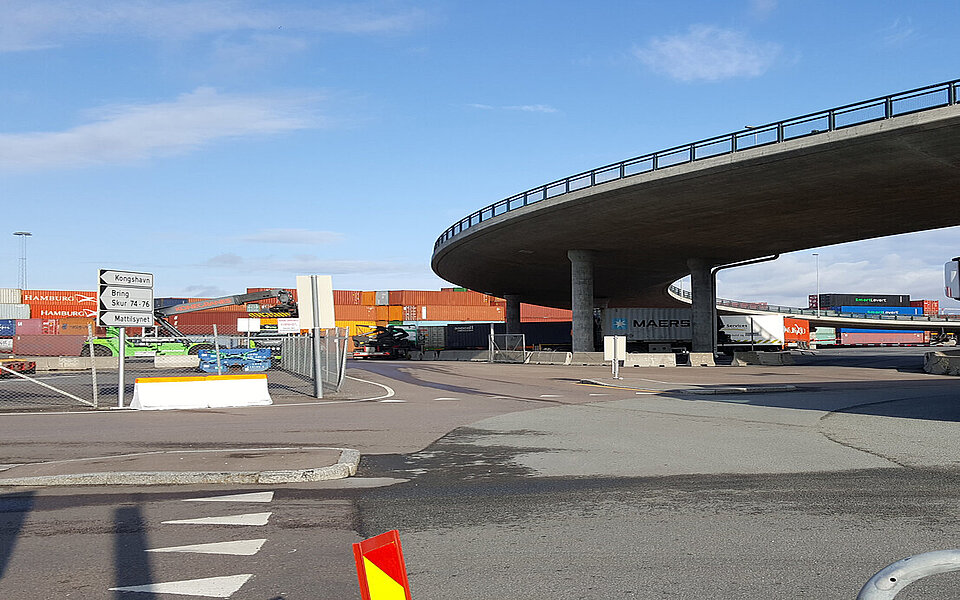

Oslo Kommune was confronted with the failure of a drinking water pipe supplying a busy industrial area of Oslo Sydhavna. The pipe with the diameter DN 355 runs beneath a highly frequented road on which trucks transport containers and various goods from and to the port 24 hours and seven days a week. In addition, the pipeline is located next to a railroad line which further limits the space available for the renovation works.

Special features

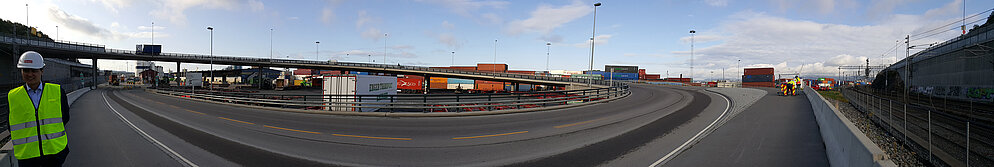

Location of the existing line

between busy street and railway line.

Traffic could be maintained

without restrictions, despite the construction site.

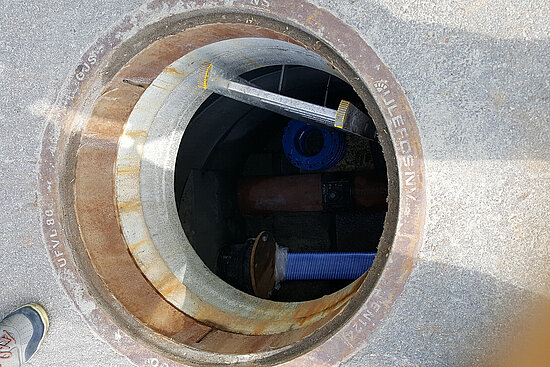

Installation through existing manholes

without additional construction pits

Short installation times with minimal space requirements

Technical details

Material of host pipe

HDPE

Diameter of host pipe

DN 355 SDR11

Transported fluid

Potable water

Operating pressure

10 bar

Total length

215 m

Number of sections

1 pull through two manholes

Number of bends

2 bends of 45° and 22°

Installation time

1 week

Why Primus Line®?

Perfect solution

for the use in urban or industrial areas so as not to affect road and railway traffic, also due to the short installation times

Possibility of installation in existing manholes

with minimal space requirements

By using existing shafts and chambers

no destruction of existing infrastructure. Additional costs, e. g. to restore the asphalt surface were minimised: Three manholes located in asphalt but no additional costs for restoring it

Low emissions

The City of Oslo attaches much importance on low emissions, so Primus Line® was the perfect solution compared to other methods
