W-Liner | Water

After trenchless rehabilitation with the W-Liner, pressure pipes can once again transport drinking water and other types of water safely and without loss.

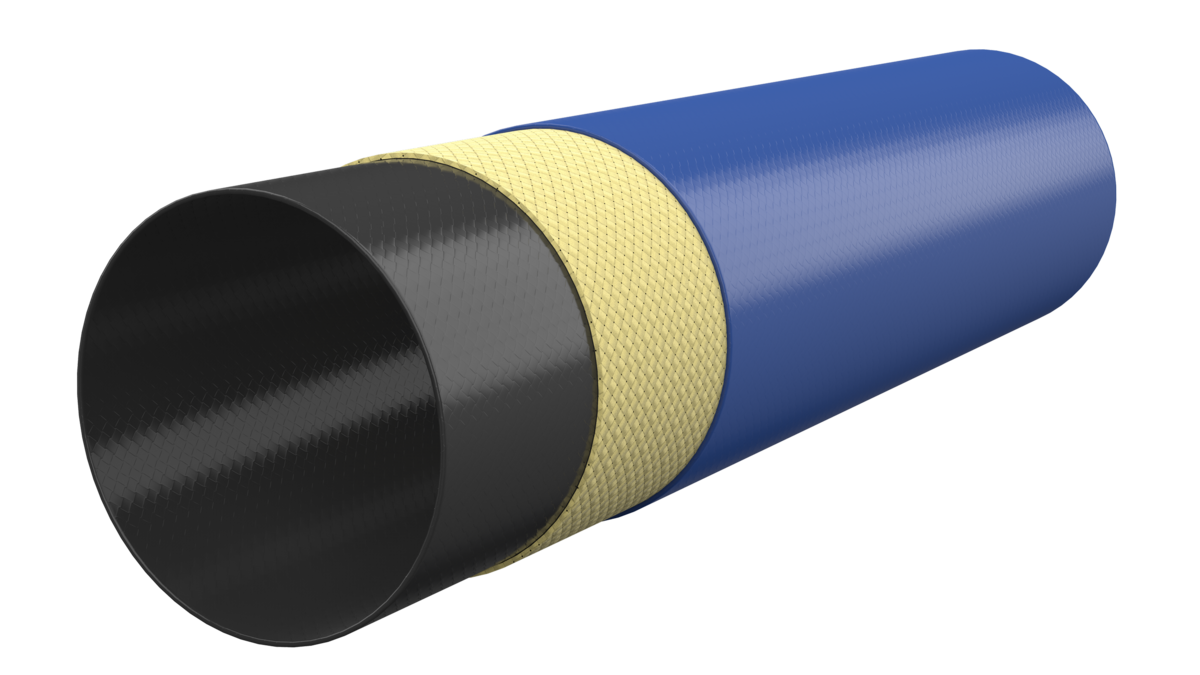

For application in the water sector, the inner and outer layers of the liner consist of polyethylene (PE).

The W-Liner satisfies the highest requirements for drinking water and is certified in accordance with globally reputable standards such as KTW-BWGL, DVGW Technical Standard W 270, ANSI/NSF/CAN 61, BS 6920, AS/NZS 4020 and many more.

The Primus Line W-Liner is ideal for:

Drinking water
Fire water
Industrial water
Sea water
Process water
Residential wastewater
Industrial wastewater
Treated wastewater
Brine

Other media only after detailed examination and approval by our technical department.

Back to Liner

Additional information on the variants

¹ determined according to ISO 9080 for water at 20 °C
² liner labeling may differ due to different calculation basis

Variants

Type ND

Variant	Outer diameter	Wall thickness	Inner diameter	Burst pressure	Operating pressure¹⁺²	Weight
ND 150	134 mm	6.0 mm	122 mm	914 psi	363 psi	2.1 kg/m
ND 150 SD	150 mm	6.0 mm	138 mm	783 psi	290 psi	2.4 kg/m
ND 200	183 mm	6.0 mm	171 mm	682 psi	261 psi	2.9 kg/m
ND 203 SD	205 mm	6.0 mm	193 mm	609 psi	232 psi	3.3 kg/m
ND 250	237 mm	6.0 mm	225 mm	551 psi	218 psi	3.8 kg/m
ND 261 SD	261 mm	6.0 mm	249 mm	435 psi	174 psi	4.2 kg/m
ND 300	284 mm	6.0 mm	272 mm	435 psi	174 psi	4.6 kg/m
ND 350	312 mm	6.0 mm	300 mm	478 psi	191 psi	5.0 kg/m
ND 400	354 mm	6.0 mm	342 mm	435 psi	174 psi	5.8 kg/m

Type MD

Variant	Outer diameter	Wall thickness	Inner diameter	Burst pressure	Operating pressure¹⁺²	Weight
MD 150	134 mm	6.0 mm	122 mm	2,030 psi	812 psi	2.2 kg/m
MD 150 SD	150 mm	6.0 mm	138 mm	1,740 psi	696 psi	2.4 kg/m
MD 200	183 mm	6.0 mm	171 mm	1,450 psi	580 psi	3.0 kg/m
MD 203 SD	205 mm	6.0 mm	193 mm	1,218 psi	479 psi	3.4 kg/m
MD 250	237 mm	6.0 mm	225 mm	1,088 psi	435 psi	4.0 kg/m
MD 261 SD	261 mm	6.0 mm	249 mm	928 psi	363 psi	4.4 kg/m
MD 300	284 mm	6.0 mm	272 mm	928 psi	363 psi	4.8 kg/m
MD 350	312 mm	6.0 mm	300 mm	725 psi	290 psi	5.2 kg/m
MD 400	354 mm	6.0 mm	342 mm	667 psi	261 psi	6.0 kg/m
MD 450	408 mm	6.0 mm	396 mm	580 psi	232 psi	7.0 kg/m
MD 500	454 mm	6.0 mm	442 mm	580 psi	232 psi	7.7 kg/m

Type HD

Variant	Outer diameter	Wall thickness	Inner diameter	Burst pressure	Operating pressure¹⁺²	Weight
HD 150 SD	155 mm	8.0 mm	139 mm	2,987 psi	1,189 psi	3.3 kg/m
HD 200	187 mm	8.0 mm	171 mm	2,509 psi	1,001 psi	4.0 kg/m
HD 250	241 mm	8.0 mm	225 mm	1,856 psi	740 psi	5.3 kg/m
HD 300	288 mm	8.0 mm	272 mm	1,595 psi	638 psi	6.4 kg/m
HD 400	357 mm	8.0 mm	341 mm	1,189 psi	464 psi	8.1 kg/m
