20-inch potable water line through a 90° bend

Rehabilitating 1,890 ft of a 20” potable water line through a 90° bend with high pressure requirement in Kansas City, KS

System

Rehab

Medium

Water

Application area

Utility

Line type

Water main

Country

United States

Region

Kansas

Situation

A length of 24” PCCP pipe running from a pump station under a freshly paved road, a highway overpass and a set of railroad tracks was suffering from leaking and water loss.

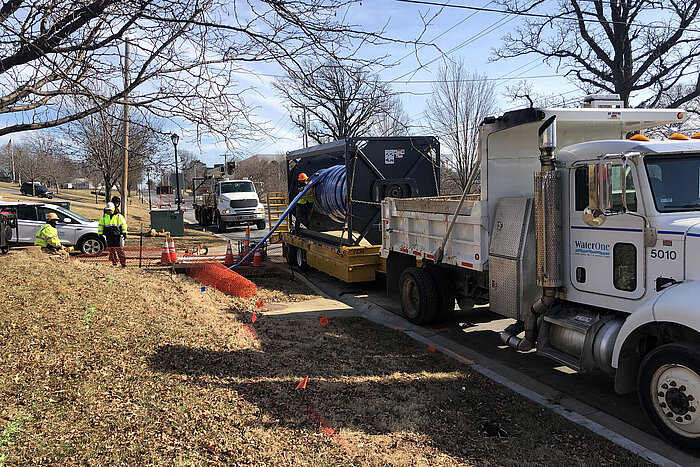

An additional issue when considering options for solving this issue was the high amount of traffic that ran through the area, limiting the water district’s ability to close off too many lanes of traffic.

Special features

90° and 45° bends

One 90° bend as well as two additional 45° bends located in the middle of a newly surfaced road

Operating and test pressure

More than 100 PSI operating pressure More than 128 PSI test pressure

Extremely sensitive to high traffic

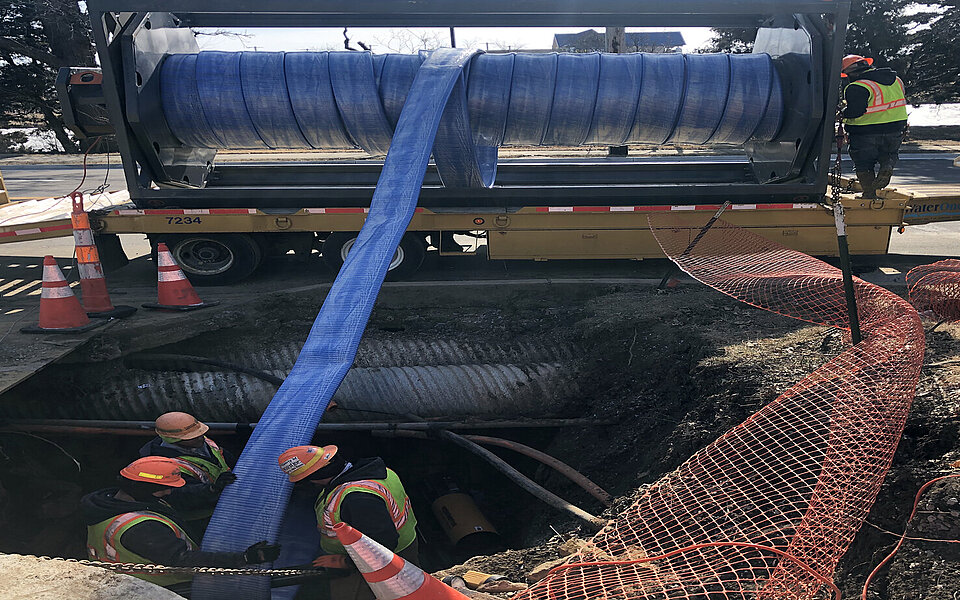

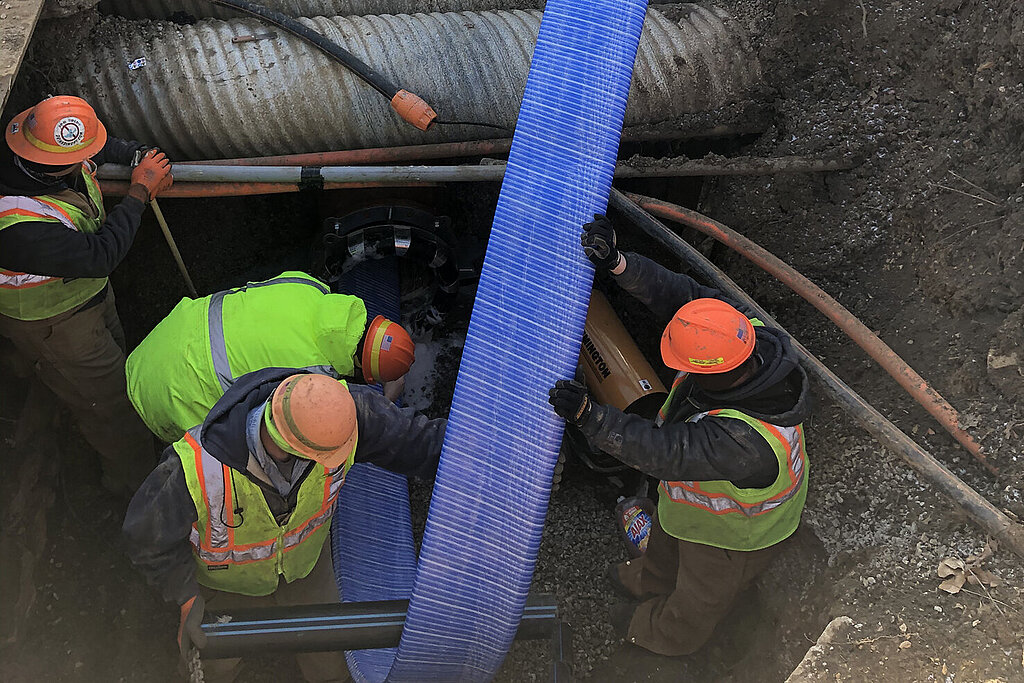

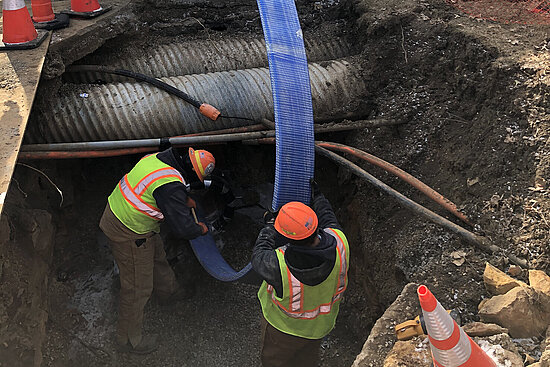

Installation executed by Water One’s (utility) own staff

Challenging first installation

Kansas City Water One chose a challenging project for their first installation of Primus Line® and work was completely at a moderate pace with professional handling of the product. Despite inclement weather, the project was a successful case study of the strengths and unique capabilities of Primus Line®

Technical details

Material of host pipe

PCCP (prestressed concrete cylinder pipe)

Diameter of host pipe

20“

Transported fluid

Potable water

Operating pressure

102.31 psi

Total length

1,890 feet

Number of sections

1 section

Number of bends

1 x 90° and 2 x 45°

Installation time

3 days

Why Primus Line®?

Combination of bends and pressure ratings

One 90-degree bend and two 45-degree bends in combination with pressures above 100 psi eliminated most other trenchless technologies

Location of the pipe

Caused by the high traffic area and the line running beneath a newly surfaced main road, a railroad and a highway overpass, dig and replace were likewise ruled out
